GPU
|

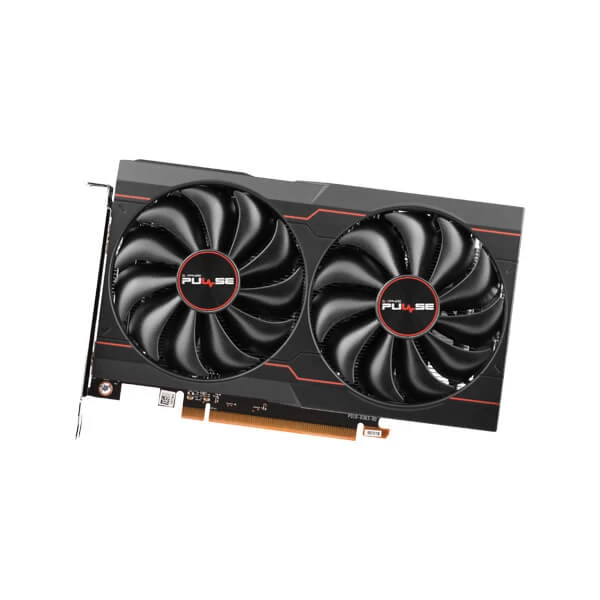

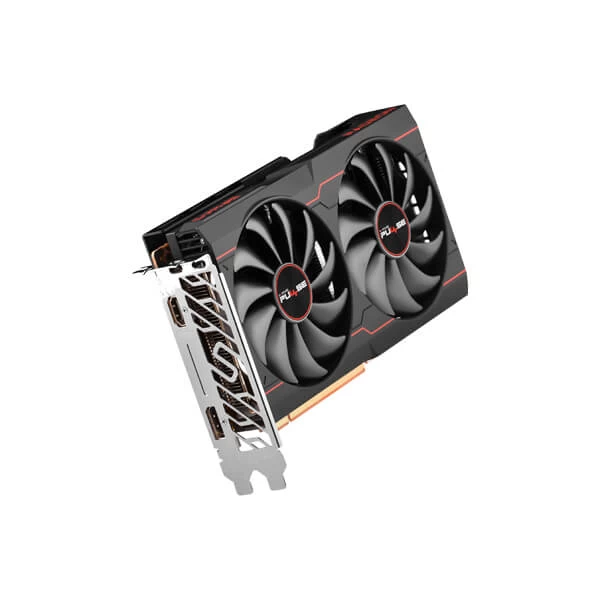

AMD Radeon™ RX 6500 XT Graphics Card
6nm GPU
AMD RDNA™ 2 Architecture
|
|
Engine Clock
|
Boost Clock: Up to 2825 MHz
Game Clock: Up to 2685 MHz
Boost Clock is the maximum frequency achievable on the GPU
running bursty workload. Boost clock achievability, frequency, and
sustainabilty will vary based on several factors, including but not limited
to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical
gaming applications, set to typical TGP(Total Graphics Power). Actual
individual game clock results may vary.
|
|
Stream Processors
|
1024
|
|
Infinity Cache
|
16MB
|
|
Ray Accelerators
|
16
|
|
Memory Size
|
4GB GDDR6
|
|
Memory Clock
|
18 Gbps Effective
|
|
Displays
|
Maximum 2 Displays
|
|
Resolution
|
HDMI™: 7680×4320
DisplayPort1.4: 7680×4320
|
|
Interface
|
PCI-Express 4.0
|
|
Output
|
1x HDMI
1x DisplayPort
|
|
BIOS Support
|
UEFI
|
|
Game Index
|
1080P
|
|
Sapphire Features
|
Premium Digital Power Design
Fuse Protection
Dual-X Cooling Technology
Intelligent Fan Control
Precision Fan Control
Metal Backplate
TriXX Supported
TriXX Boost
|
|
AMD Features
|
AMD RDNA 2 Gaming Architecture
DirectX 12 Ultimate support
AMD Smart Access Memory
AMD Infinity Cache
6nm GPU
PCI Express 4.0 support
AMD FreeSync Technology
DisplayPort 1.4 with DSC
HDMI support
Video Streaming up to 8K
AMD Radeon VR Ready Premium
AMD FidelityFX
AMD Radeon Image Sharpening
AMD Radeon Anti-Lag
AMD Radeon Software
Game Driver Optimizations
|
|
Cooling
|
Dual Fans
|
|
Form Factor
|
2 slot, ATX
Dimension: 194(L)X 120(W)X 39.8(H)mm
|
|
Power Consumption
|
130W (Board Power)
|
|
OS
|
Linux®, Windows® 7*, Windows® 10, and Windows 11
64-bit operating system required
*Does not support all features including but not limited
to Hardware Raytracing
|
|
System Requirement
|
Minimum 400 Watt Power Supply
1 x 6-pin Power Connector.
PCI Express® based PC is required with one X16 lane
graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
|
|
Warranty
|
3 Years
|
|
Note*
|
Price, feature and specifications
are subject to change without notice.
|
