Biostar A68MDE AMD A68H Chipset Motherboard

Model: Biostar A68MDE
SKU: Biostar A68MDE
In Stock
3,450

  • Apply "FIRST250" Promo Code and get ₹250/- discount (Only for new users).
  • No payment gateway charge/ No convenience fee.
  • Free Shipping on all orders (Limited Time).
  • EMI, Debit & Credit Card Options available.
  • 100% Genuine Products.
In Stock
Add to Wishlist
Add to Wishlist
Add to Wishlist
Add to Wishlist
Compare
1KG approx product weight
Delivers in 2-5 days
SKU: Biostar A68MDE Categories: , Tags: , , Brand: BIOSTAR
  • Support Socket FM2+/FM2 processors AMD A-series/ E2-series processor
  • Support AMD Mutil Core(x4,x2)
  • AMD A68H Chipset

Description

Chipset AMD A68H
CPU SUPPORT AMD A10 Processor
AMD A8 Processor
AMD A6 Processor
AMD A4 Processor
AMD E2 Processor
AMD Athlon™ II X4 Processor
Maximum CPU TDP (Thermal Design Power) : 100Watt
MEMORY Support Dual Channel DDR3 2600(OC)/2400(OC)/2133/1866/1600/1333/1066/800 MHz
2 x DDR3 DIMM Memory Slot
Max. Supports up to 32GB Memory
INTEGRATED VIDEO By CPU model
AMD Dual Graphics Technology
Supports DX12
Supports HDCP
STORAGE 4 x SATA III Connector
Support SATA RAID: 0,1,10
LAN Realtek RTL8111G – 10/100/1000 Controller
AUDIO CODEC Realtek ALC662 6-Channel HD Audio
USB 2 x USB 3.1 Gen1 Port
2 x USB 2.0 Port
2 x USB 2.0 Header
EXPANSION SLOT 1 x PCI-E 3.0 x16 Slot(supported by FM2+ CPU)
1 x PCI-E 2.0 x1 Slot

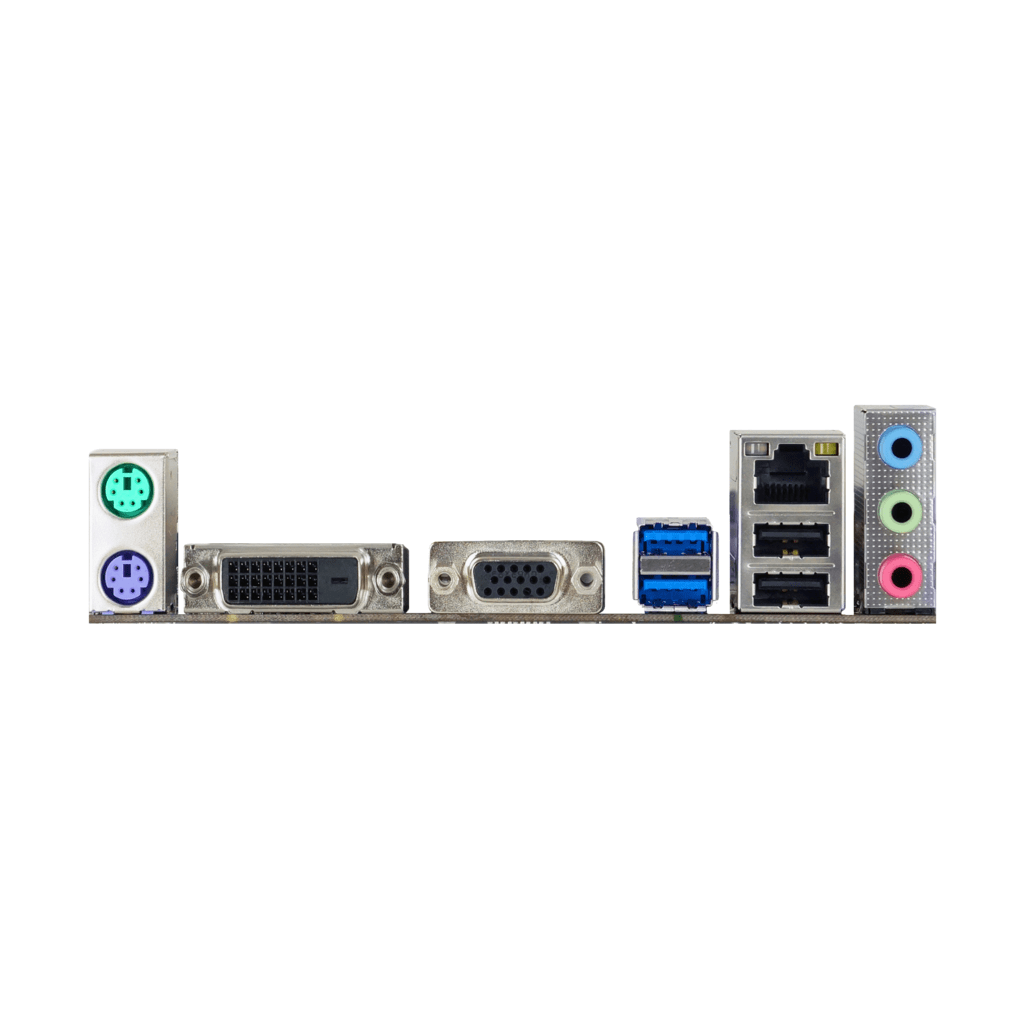

REAR I/O 1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.1 Port
2 x USB 2.0 Port
1 x DVI-D Connector
1 x VGA Port
1 x LAN Port
3 x Audio Jacks
INTERNAL I/O 2 x USB 2.0 HeaderSupport 4 devices
4 x SATA III Connector (6Gb/s)
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Connector
1 x System Fan Connector
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
DIMENSION Micro ATX Form Factor Dimension: 215 x 170mm ( W x L )
OS SUPPORT Supports Windows XP / 7 / 8 / 8.1 / 10
BUNDLE SOFTWARE BullGuard
ACCESSORIES 1 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
Caution!! The specification and pictures are subject to change without notice!
