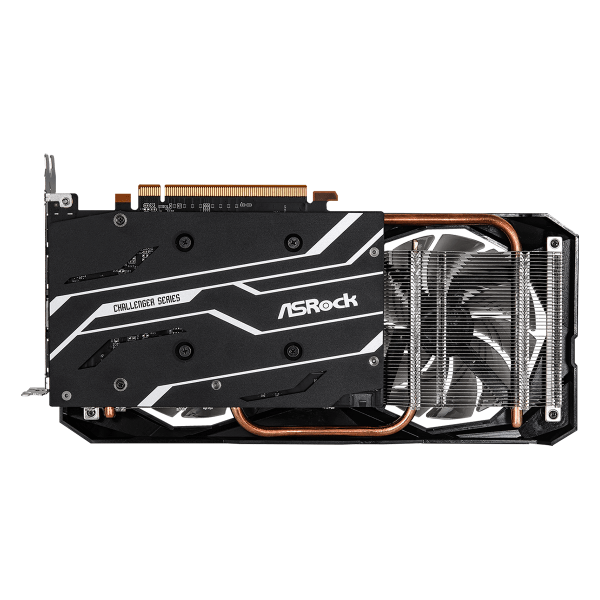

Asrock AMD Radeon RX 6600 Challenger D 8GB Graphic Card
–7nm AMD Radeon™ RX 6600
–GPU Clock (Boost/Game*): TBD
–8GB 128-bit GDDR6 @ 14 Gbps
–1*8-pin Power Connector
–3*DisplayPort™ 1.4 with DSC, 1*HDMI™ 2.1 VRR
–DirectX® 12 Ultimate
–Dual Fan Design
–Stylish Metal Backplate
–Striped Axial Fan
–0dB Silent Cooling
–Super Alloy Graphics Card
Optimized Cooling Efficiency.
Provides not only the fancy outlook but also the optimized cooling efficiency for the best balance between performance and silence.
Solid and Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
Designed For Enhanced Airflow.
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Better Heat Transfer.
Help to transfer the heat of the components to the heatsink, improving heat dissipation.
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
High Quality Components.
ASRock graphics cards are equipped with high quality components to maximize the performance and reliability.
AMD Radeon™ RX 6600 series graphics cards deliver serious 1080p gaming and ultra-high frame rates. Get up to 32 high-performance compute units, groundbreaking AMD Infinity Cache, and up to 8GB of dedicated GDDR6 memory. Experience the next gen of gaming performance with AMD Smart Access Memory technology1 when you pair an AMD Radeon™ RX 6600 series graphics card with an AMD Ryzen™ 5000 Series desktop processor.
|Graphics Engine||AMD Radeon™ RX 6600|
|Bus Standard||PCI® Express 4.0 x8|
|Video Memory||8GB GDDR6|
|Engine Clock||Boost Clock: TBD|
|Game Clock: TBD|
|Base Clock: TBD|
|Memory Clock||14 Gbps|
|Resolution||Digital Max Resolution: 7680×4320|
|Interface||1 x HDMI™ 2.1 VRR|
|3 x DisplayPort™ 1.4 with DSC|
|Power Connector||1 x 8-pin|
|Accessories||1 x Quick Installation Guide|
|Dimensions||269 x 132 x 41 mm, 2-slot|
